IR-94BZA

Available Individually

《 Main Applications 》
AGVs and AMRs, Delivery Robots,
Electric Wheelchairs

Product Features

● Compact & Powerful

Our brushless motors generate high output for their size.Engineered to be slim, their structure provides flexible product design.

● Energy-Saving

Our motors have an energy conversion efficiency of up to 90%, helping to improve the power efficiency of your products.

● Precise Rotational Control

The resolver sensor, equivalent to a 15-bit angular resolution, enables speed control from zero rotation. This allows for high stopping accuracy and smooth driving in the low-speed range.

Durability to Withstand Harsh Operating Environments

In addition to the water resistance equivalent to IPX4, our sensor features a unique magnetic circuit design and manufacturing technology that enables it to withstand heat, oil, dust, and vibration. It is designed to be used in harsh environments.

Performance Table

Instant Maximum Output 710 W (10 sec max)
Instant Maximum Torque 2.0 Nm (10 sec max)
Rated Voltage 48 V
Rated Output 355 W
Rated Torque 1.0 Nm
Rated Speed 3,400 r/min
Operating Voltage 17-60 V
Size 85.0 mm × 85.0 mm × Length : 65.5 mm
Weight 1.1 kg
Withstand Voltage

500 V AC 1 minute
(Between Terminal and Case)

Insulation Resistance 10 MΩ (min.) (500 V DC)
Water Resistance

IPX4
(Water-resistant except at base of motor shaft. Must use dedicated water-resistant connectors.)

Angle Sensor Current-Detection Type Resolver Sensor





Drawing

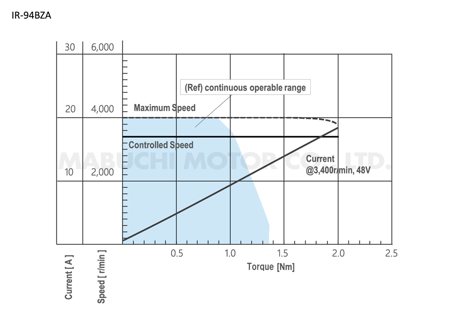

Performance Curve

Download

You can download documents from the buttons above.
* "CE Declaration of Conformity" of this product is currently in preparation.
