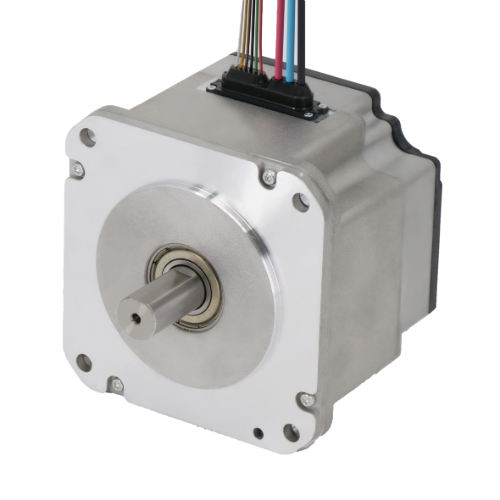

Product Features
Compact & High Torque
Thin motor design that combines compactness and light weight with high torque contributes to increased design freedom inside the housing.
● Energy Saving
Up to 90% energy conversion efficiency contributes to improved cost efficiency of customer products.
Precise control
Resolver sensor with angular resolution equivalent to 15 bits enables speed control from zero rotation, realizing high stopping accuracy and smooth drive at low speeds.
Excellent environmental resistance
In addition to waterproof performance equivalent to IPX4, the sensor is resistant to heat, oil, dust, and vibration through unique magnetic circuit design and manufacturing technology, making it suitable for use in harsh environments.
performance table
| Sensor method | Current-detecting resolver sensor (Angle resolution equivalent to 15 bits) |
| Rated voltage | 48V |
| Operating voltage | 17-60V |
| Instantaneous maximum output | 980W (max. 10 sec.) |
| Instantaneous maximum torque | 4.0Nm (max. 10 sec.) |
| Rated output | 640W |
| Rated torque | 2.3 Nm |
| Rated speed | 2,660r/min |
| Size | 100.0 mm × 100.0 mm × 74.4 mm |
| Weight | 1.9kg |
| Dielectric strength | AC 500V for 1 minute (between terminals and case) |
| Insulation resistance | 10MΩ min. at 500V DC |
| Waterproof performance | IPX4 (Excluding shaft penetration. Use dedicated waterproof connector) |
| Standards/Certifications/Directives | RoHS |
| Controller |
DR-60FC1-L26□□□ DR-60FC3-L26□□□ |
Click here for information on extension and connection cables.

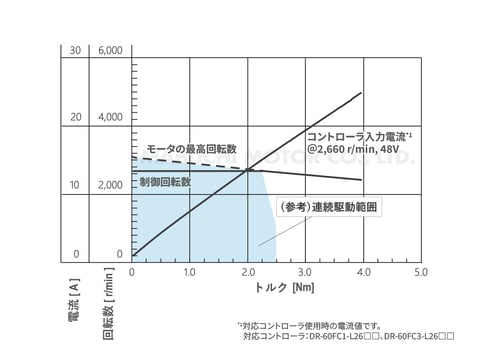

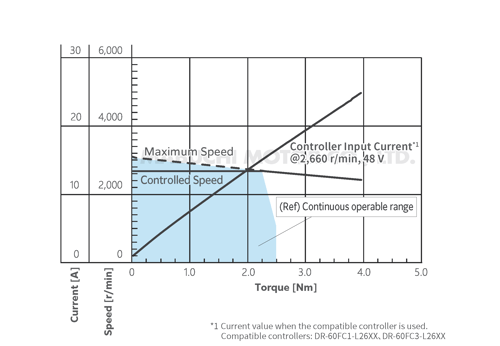

performance chart

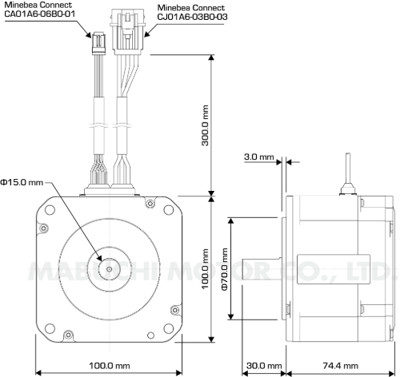

Outline Drawing
