Collaborative Robots
Product Features
● Suits a Wide Range of Applications
The frameless structure allows a high degree of freedom in design to match the shape, structure, size, etc. of the customer's product, making it suitable for a wide range of applications.
● Make Your Products Smaller and Lighter
Can be built in as is. This leads to further downsizing and weight reduction of your products.
● Energy-Saving
Highly efficient magnetic circuit design that saves energy with less energy loss even when used for long periods of time.
● Smooth Movement
Low cogging for smooth motion.

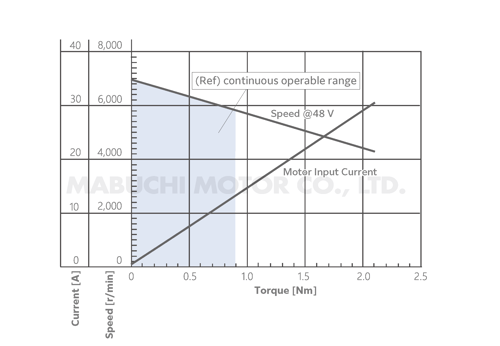

Performance Table
| Nominal Voltage | 48 V |
| Operating Voltage | 15-55 V |
| Peak Power | 900 W (5 s max.) |
| Peak Torque | 2.1 Nm (5 s max.) |
| No-Load Speed | 6,950 rpm |
| Rated Power | 500 W * |
| Rated Torque | 0.9 Nm * |
| Rated Speed | 5,650 rpm * |
| Stator Outer Diameter | Φ75.0 mm |
| Rotor Inner Diameter | Φ26.0 mm |
| Stator Length | 35.0 mm |
| Rotor Length | 18.4 mm |
| Weight | 0.36 kg |
| Dielectric Strength | 500 V AC 1 minute (between the lead wire and laminated core) |
| Insulation Resistance | 10 MΩ (min.) (500 V DC) |
| Standards / Certification / Directives | CE (RoHS) |
* The rated power, torque, and speed of this motor will vary depending on the heat-dissipation properties of the housing in which it is installed.
Drawing
