IS-B5BZA

IS-B5BZA
《 Main Applications 》
AGVs and AMRs, Delivery Robots,
Electric Wheelchairs

Product Features

● Compact & Powerful
Our brushless motors generate high output for their size.Engineered to be slim, their structure provides flexible product design.
● Energy-Saving
Our motors have an energy conversion efficiency of up to 90%, helping to reduce power consumption of your products.
● IPX4 Rated-Water Resistant Design
Our motors and controllers have an IPX4 rating. The water-resistant design is ideal for products operated in demanding conditions and outdoors (e.g. delivery robots, agricultural robots).



Available Individually



Please feel free to contact us
regarding usage and mass production support.

Performance Table

Instant Maximum Output 1,000 W (10 sec max.)
Instant Maximum Torque 4.0 Nm (10 sec max.)
Rated Voltage 48 V
Rated Output 640 W
Rated Torque 2.3 Nm
Rated Speed 2,660 r/min
Operating Voltage 15 - 55 V
Size 100.0 mm × 100.0 mm × 54.0 mm
Weight 1.76 kg
Withstand Voltage 500 V AC 1 minute
(between terminal and case)
Insulation Resistance 10 MΩ min. (500 V DC)
Degree of Protection IPX4
(Water-resistant except at base of motor shaft. Must use dedicated water-resistant connectors.)
Controller

DS-60FC1-L2500
*Under development
CAN communication
(without terminating resistance)



DS-60FC3-L2500
*Under development
CAN communication
(with terminating resistance)





*Click here for extension and connection cables.

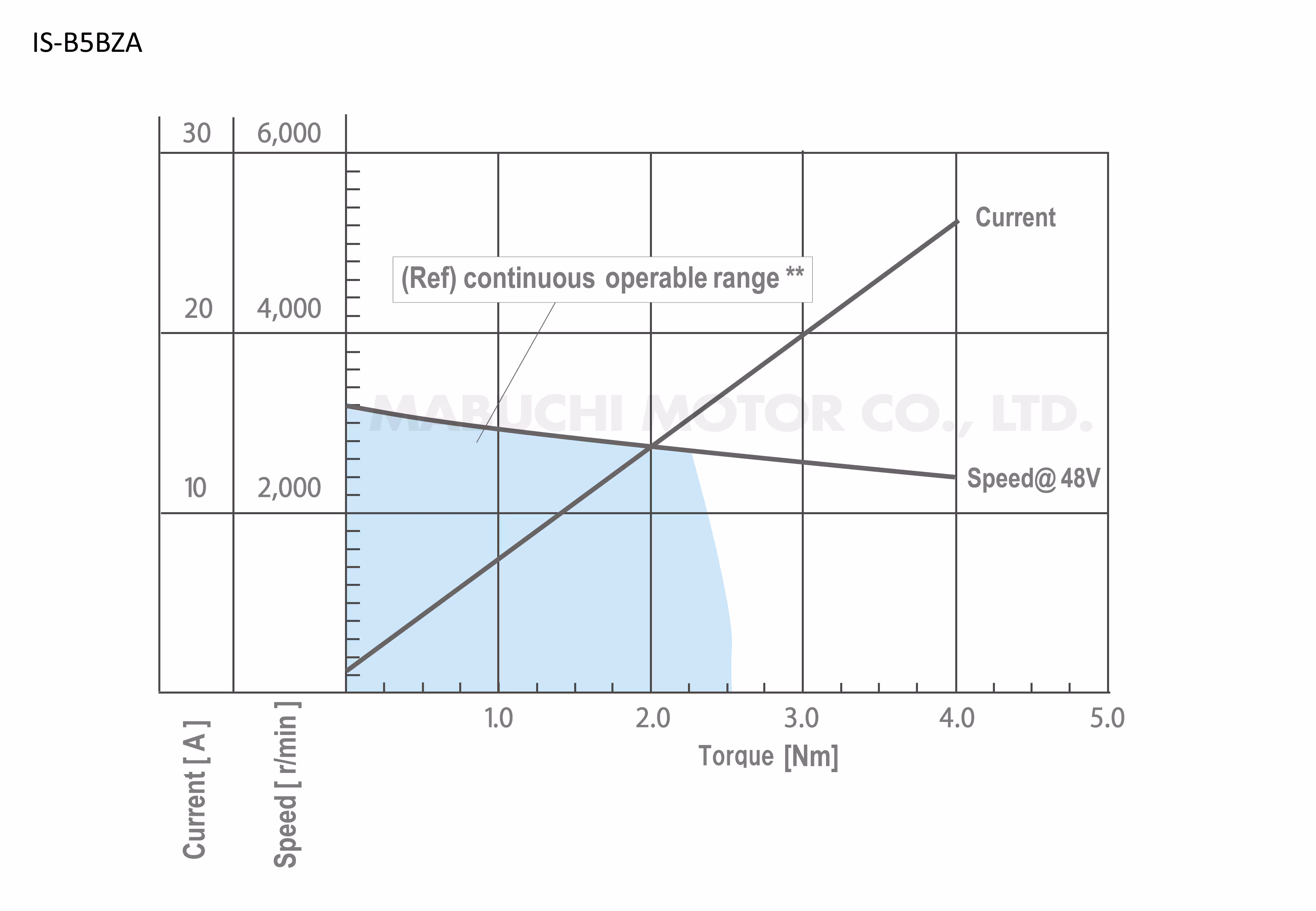

Performance Curve

Performance Curve



Drawing

Drawing



Downloads

* "CE Declaration of Conformity" of this product is currently in preparation.
