AGVs and AMRs, Delivery Robots,
Electric Wheelchairs
Product Features
● Compact & Powerful
Our brushless motors generate high output for their size.Engineered to be slim, their structure provides flexible product design.
● Energy-Saving
Our motors have an energy conversion efficiency of up to 90%, helping to reduce power consumption of your products.
● IPX4 Rated-Water Resistant Design
Our motors and controllers have an IPX4 rating. The water-resistant design is ideal for products operated in demanding conditions and outdoors (e.g. delivery robots, agricultural robots).
Available Individually
Please feel free to contact us
regarding usage and mass production support.
regarding usage and mass production support.
Performance Table
| Sensor Type | Hall sensor |
| Nominal Voltage | 24 V |
| Operating Voltage | 15-55 V |
| Peak Power | 410 W (10 s max.) |
| Peak Torque | 2.0 Nm (10 s max.) |
| No-Load Speed | 2,800 rpm |
| Rated Power | 250 W |
| Rated Torque | 1.0 Nm |
| Rated Speed | 2,400 rpm |
| Dimensions | 85.0 mm × 85.0 mm × 45.5 mm |
| Weight | 0.83 kg |
| Dielectric Strength | 500 V AC 1 minute (between terminal and motor housing) |
| Insulation Resistance | 10 MΩ (min.) (500 V DC) |
| Water Ingress Protection | IPX4 (When using the appropriate mating connectors) (Except at the base of the motor shaft) |
| Standards / Certification / Directives | RoHS |
| Controller | DS-34EC1-IS2□□ CAN communication (Switchable terminating resistor) |
*Click here for extension and connection cables.

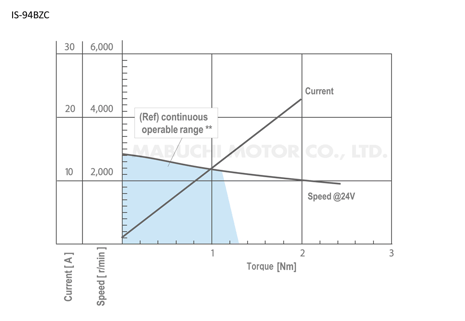

Performance Curve
Drawing
