IS-74BZA

Available Individually

《 Main Applications 》
AGVs and AMRs, Delivery Robots,
Electric Wheelchairs

Product Features

Compact & Powerful

Our brushless motors generate high output for their size.Engineered to be slim, their structure provides flexible product design.

● Energy-Saving

Our motors have an energy conversion efficiency of up to 90%, helping to reduce power consumption of your products.

● IPX4 Rated-Water Resistant Design

Our motors and controllers have an IPX4 rating. The water-resistant design is ideal for products operated in demanding conditions and outdoors (e.g. delivery robots, agricultural robots).

Performance Table

Instant Maximum Output

280 W (10 sec max)
Instant Maximum Torque  0.9 Nm (10 sec max)
Rated Voltage 24 V
Rated Output 200 W
Rated Torque 0.6 Nm
Rated Speed 3,200 r/min
Operating Voltage 15-55 V
Size 60.0 mm × 60.0 mm × Length : 44.5 mm
Weight 0.52 kg
Withstand Voltage 500 V AC 1 minute
(Between Terminal and Case)
Insulation Resistance 10 MΩ (min.) (500 V DC)
Water Resistance IPX4
(Water-resistant except at base of motor shaft. Must use dedicated water-resistant connectors.)





Drawing

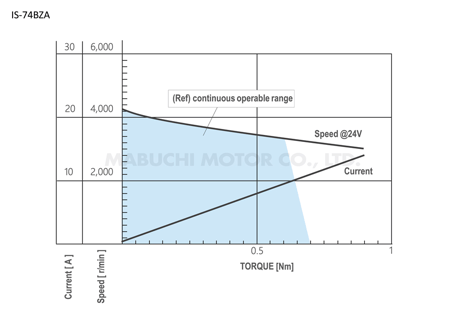

Performance Curve

Download

You can download documents from the buttons above.
* "CE Declaration of Conformity" of this product is currently in preparation.
