IR-74BZA
《 Main Applications 》
AGVs and AMRs, Delivery Robots,
Electric Wheelchairs
Product Features
● Compact & Powerful
Our brushless motors generate high output for their size.Engineered to be slim, their structure provides flexible product design.
● Energy-Saving
Our motors have an energy conversion efficiency of up to 90%, helping to improve the power efficiency of your products.
● Precise Rotational Control
The resolver sensor, equivalent to a 15-bit angular resolution, enables speed control from zero rotation. This allows for high stopping accuracy and smooth driving in the low-speed range.
● Durability to Withstand Harsh Operating Environments
In addition to the water resistance equivalent to IPX4, our sensor features a unique magnetic circuit design and manufacturing technology that enables it to withstand heat, oil, dust, and vibration. It is designed to be used in harsh environments.
Performance Table
| Instant Maximum Output | 280 W (10 sec max) |
| Instant Maximum Torque | 0.9 Nm (10 sec max) |
| Rated Voltage | 24 V |
| Rated Output | 200 W |
| Rated Torque | 0.6 Nm |
| Rated Speed | 3,200 r/min |
| Operating Voltage | 17-60V |
| Size | 60.0 mm × 60.0 mm × Length : 66.5 mm |
| Weight | 0.62 kg |
| Withstand Voltage | 500 V AC 1 minute (Between Terminal and Case) |
| Insulation Resistance | 10 MΩ (min.) (500 V DC) |
| Water Resistance | IPX4 (Water-resistant except at base of motor shaft. Must use dedicated water-resistant connectors.) |
| Angle Sensor | Current-Detection Type Resolver Sensor |
Drawing

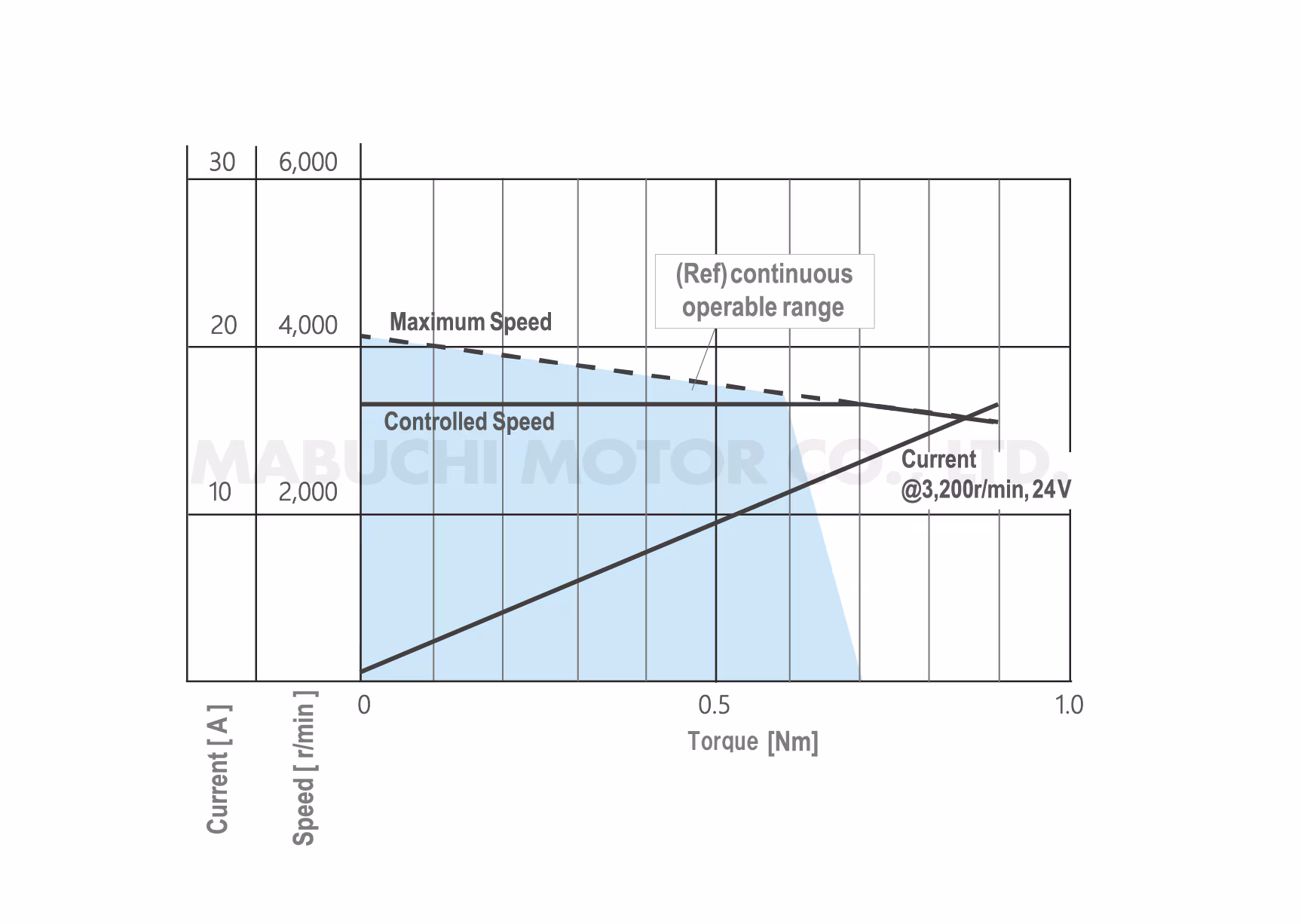

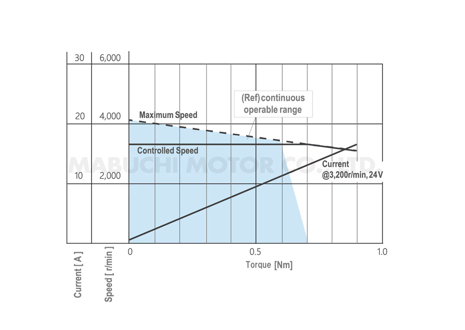

Performance Curve
Download
* "Instruction Manual", "3D Drawing",
"CE Declaration of Conformity" of this product are currently in preparation.
