40mm Flange Size Brushless Motor
Short Type (Low Torque Model)
*TBD
Product Features
● High Output & High Responsiveness
It realizes high output and high responsiveness despite its small Size (flange angle 40mm).
● Integrated Mechanical and Electrical Structure
The built-in control board with a microcomputer saves space and meets a variety of control needs.
● Various Options Available
We offer options such as gears and brakes.

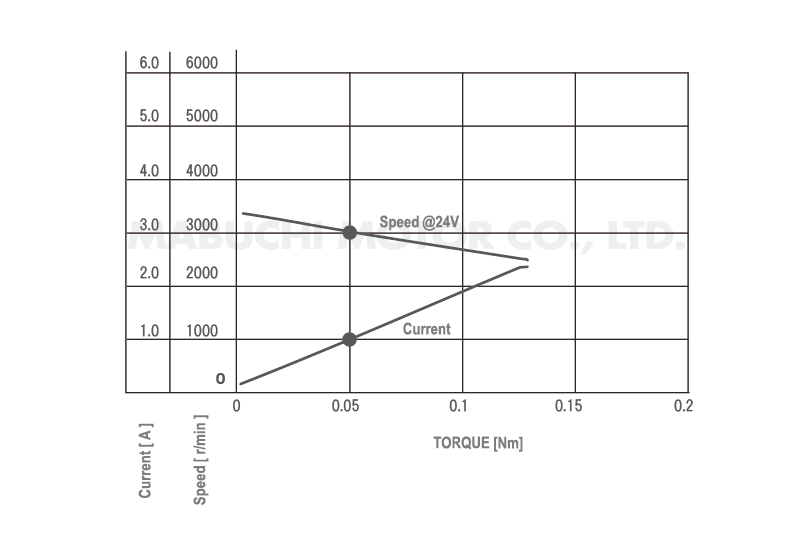

Performance Table
(Preliminary Data)
| Rated Voltage | 24 V * |
| Rated Output | 15 W |
| Rated Torque | 0.05 Nm |
| Rated Speed | 3,000 r/min |
| Size | 40.0 mm × 40.0 mm × Length : 40.0 mm |
| Weight | 150 g |
| UL/CE | Expected to Be Supported |
