ID-659ZB
(Coming Soon)
《 Main Applications 》
Electric Actuators, Robots, AGVs and AMRs
Product Features
● High Output & High Responsiveness
It realizes high output and high responsiveness despite its small Size (flange angle 40mm).
● Integrated Mechanical and Electrical Structure
The built-in control board with a microcomputer saves space and meets a variety of control needs.
● Various Options Available
We offer options such as gears and brakes.
Performance Table
*Performance figures are subject to change.
| Sensor Type | Hall Seosor |
| Rated Voltage | 24 V |
| Operating Voltage | 24 V |
| Peak Power | 80 W (10 sec max.) |
| Peak Torque | 0.3 Nm (10 sec max.) |
| No-Load Speed | 5,050 r/min |
| Rated Power | 70 W |
| Rated Torque | 0.14 Nm |
| Rated Speed | 4,750 r/min |
| Dimensions | 40.0 mm × 40.0 mm× 53.5 mm |
| Weight | 0.32 kg |
| Dielectric Strength |
500 V AC 1 minute |
| Insulation Resistance | 10 MΩ (min.) (500 V DC) |
|
Safety Standards Conforming Directives |
UL and CE compliance planned RoHS |
| Controller |
Built-in microcontroller-equipped control board Digital I/O UART communication |

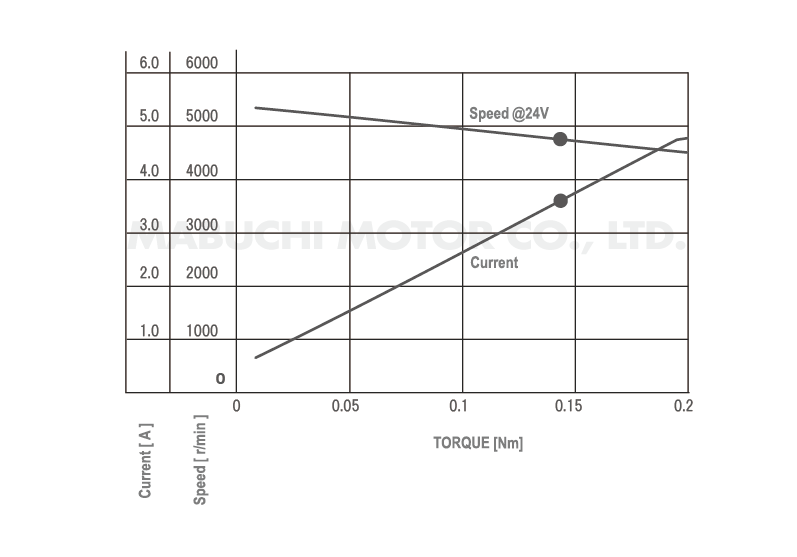

Performance Curve
*Performance figures are subject to change.
