Extention / Connection Cables

Extention and connection cables for further system integration available for purchase separately.

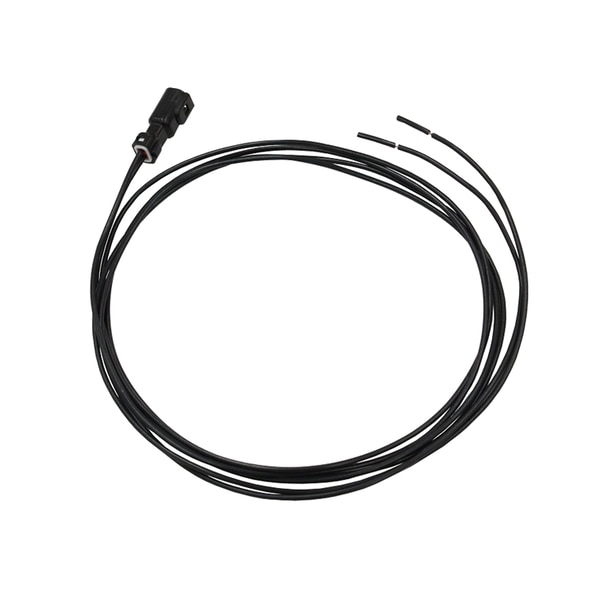

Usage Motor Extension Cable
for Motor Power Source		 Motor Extension Cable

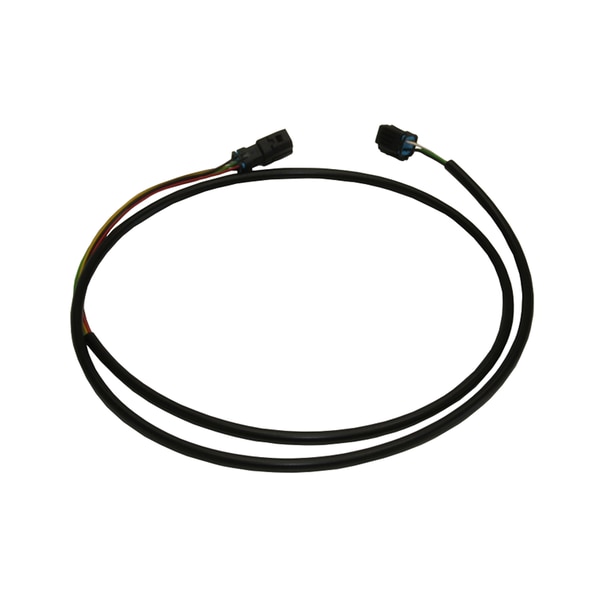

for Motor Sensor		 Motor Extension Cable
for Static Brake

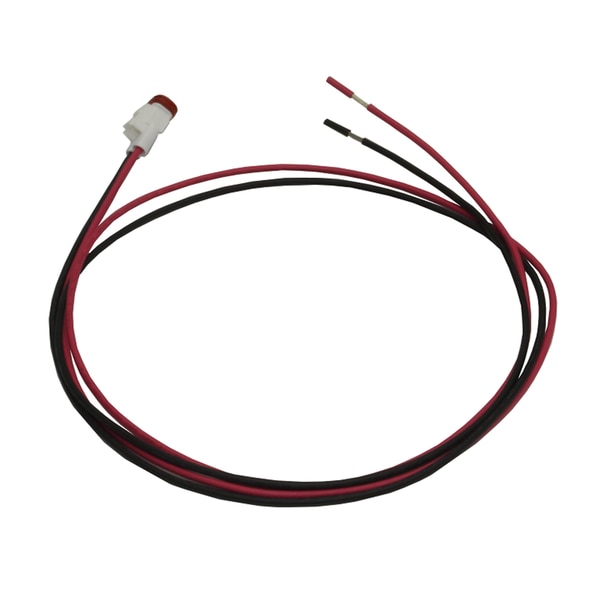

 Controller Connection Cable
for Power Source

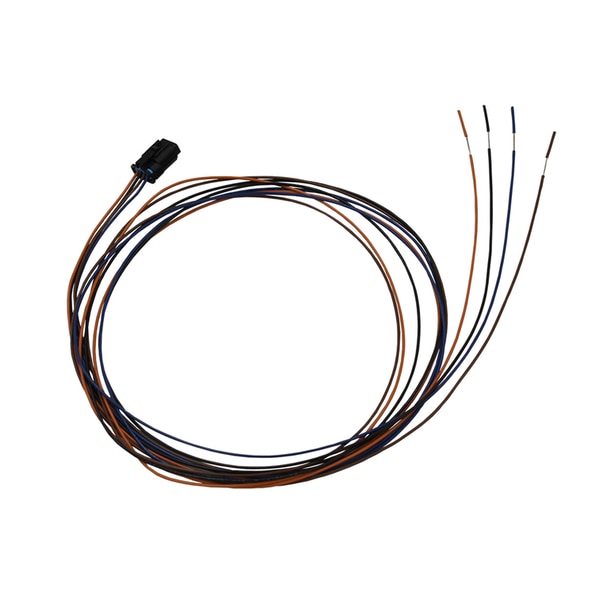

 Controller Connection Cable
for Communication
Product
Name		 67-Q22AA 67-Q23AA  41-L15XA 41-L11XA 41-L12XA

Compatible
Models		 IS-74, MS-74
IR-74,
IS-94, MS-94
IR-94, MR-94		 IS-74, MS-74
IR-74,
IS-94, MS-94
IR-94, MR-94		 IS-74, MS-74
IR-74,
IS-94, MS-94
IR-94, MR-94		 DS-34
DR-40		 DS-34
DR-40
Length  1m 1m 1m 1m 1m

*Please contact us regarding the cables for IS-B5BZA, MS-B5BZD, and DS-60FC1/3 (controllers).

The system configuration of each brushless motor product,
including cable connections, can be found in the catalog.
