Product Features
An ultra-compact BLDC motor that delivers high torque.
Ideal for a wide range of applications, such as robotic hands and compact industrial units.
Performance Table
| Nominal Voltage | 24 V |
| Maximum output | 10 W |
|
Maximum efficiency
|
60 % |
|
Stall Torque
|
25 mN・m |
| No-Load Speed | 15,000 rpm |
|
No-Load Current
|
0.2 A |
| Rated Torque | 6 mN・m |
|
Speed at Rated Torque
|
12,000 rpm |
|
Current at Rated Torque
|
0.5 A |
|
Torque Constant
|
17 mN・m/A |
|
Speed/Torque Gradient
|
600 (rpm)/mN・m |
|
Terminal Resistance
|
8 Ω |
| Dimensions | Φ 12 × 27 mm |
| Weight | 18.5 g |

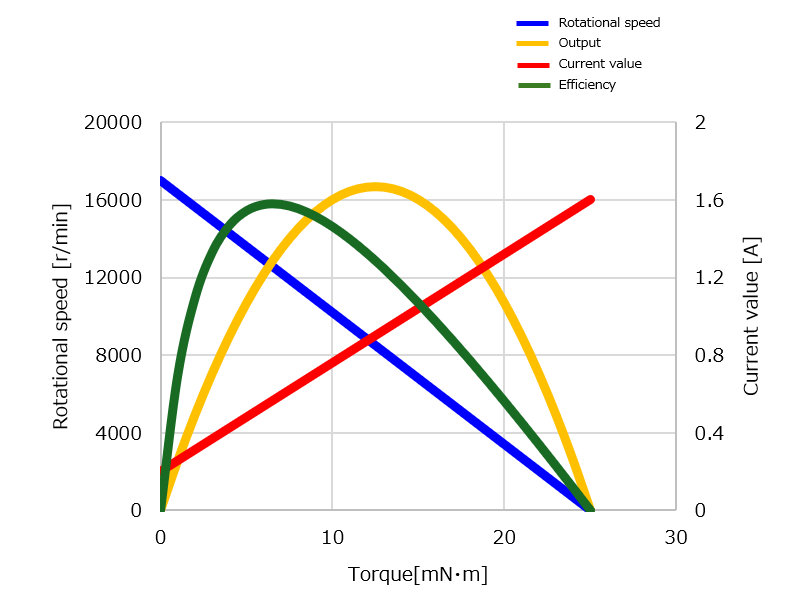

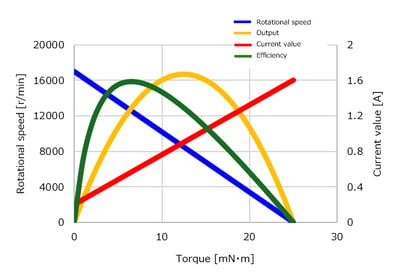

Performance Curve

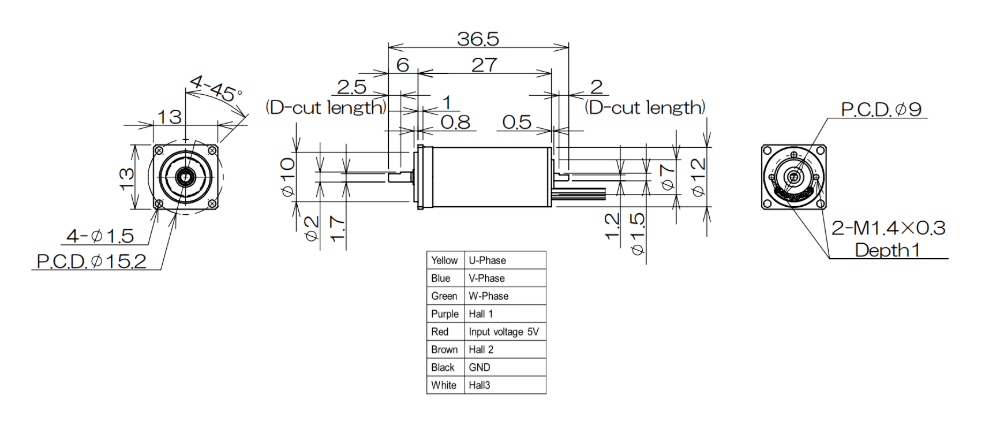

Drawing
