Product Features
A standard 35 mm PM stepper motor offering compact size, high torque, and long life.
Open-loop control allows accurate and reliable positioning.
Performance Table
| Drive method | Bipolar / Unipolar |
| Coil resistance | 5 Ω |
| Step angle | 7.5 ° |
| Number of steps | 96 |
| Insulation resistance | 100 MΩ min.（DC 500V） |
| Dielectric strength | AC 500 V（50Hz, 1min） |
| Insulation class | class E |
| Dimensions | Φ 35×15.2mm |
| Weight | 55 g |

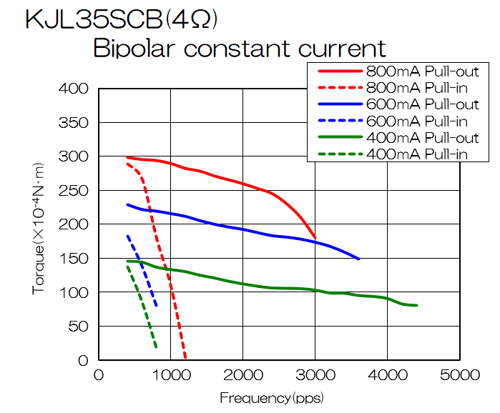

Performance Curve

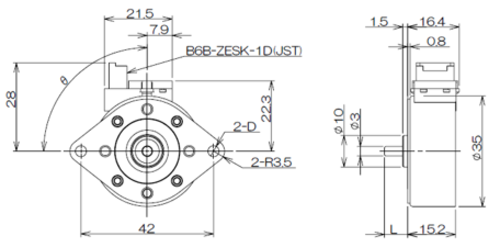

Drawing
