Product Features
A standard 25 mm PM stepper motor featuring a compact design, high torque, and long service life.
Open-loop control enables precise positioning for a wide range of applications.
Performance Table
| Drive method | Bipolar / Unipolar |
| Coil resistance | 5 Ω |
| Step angle | 7.5 ° |
| Number of steps | 48 |
|
Insulation resistance |
100 MΩ min.（DC 500V） |
| Dielectric strength | AC 500 V（50Hz, 1min） |
|
Insulation Class |
class E |
| Dimensions | Φ 25×15.8mm |
| Weight | 30 g |

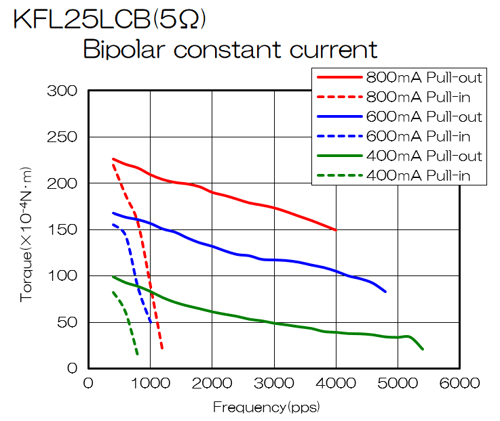

Performance Curve
Drawing
