Product Features
PM stepper motor featuring an integrated 42 mm diameter slim gearhead.
Designed with magnetic flux leakage countermeasures, it can be used reliably even in close proximity to magnetic sensors, making it suitable for space-constrained and precision applications.
Performance Table
| Drive method | Bipolar constant current |
| Gear ratio | 2.5 |
| Coil resistance | 8.7 Ω |
| Step angle | 3 ° |
|
Number of steps per revolution |
120 |
| Insulation resistance | 100 MΩ min.（DC 500V） |
| Dielectric strength | AC 500 V（50Hz, 1min） |
| Insulation Class | class E |
| Dimensions | Φ 42×16.4mm |
| Weight | 85 g |

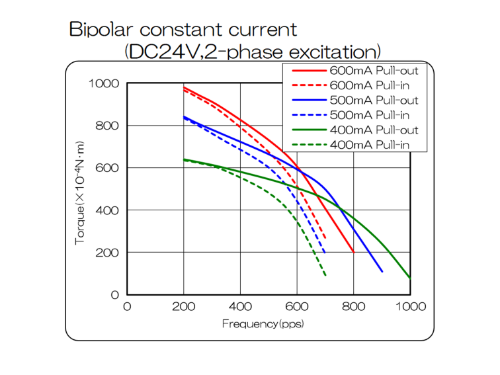

Performance Curve

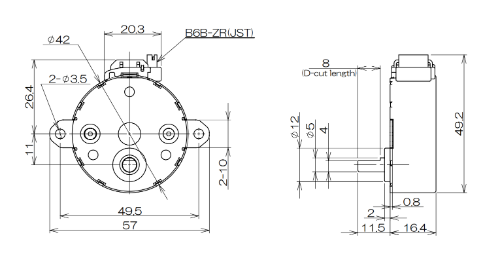

Drawing
