Product Features
PM stepper motor with an integrated 30 mm diameter gearhead.
Its compact design reduces the need for external gears, helping save installation space and simplify equipment design.
Performance Table
| Drive method | Bipolar constant current |
| Gear ratio | 5 |
| Coil resistance | 15 Ω |
| Step angle | 3 ° |
| Number of steps per revolution | 120 |
| Insulation resitance | 100 MΩ min.（DC 500V） |
| Dielectric strength | AC 500 V（50Hz, 1min） |
| Insulation Class | class E |
| Dimensions | Φ 30×18mm |
| Weight | 50 g |

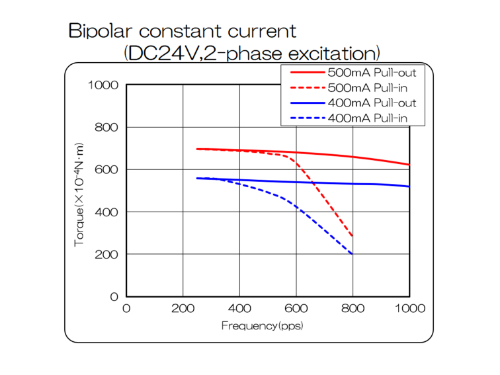

Performance Curve

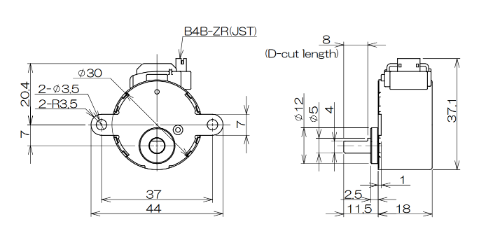

Drawing
