Product Features
A hybrid stepper motor designed to deliver both high efficiency and high output torque. With a high resolution of 2.143°/step, it provides smooth and accurate motion control.
Its superior positioning capability makes it ideal for a wide range of applications, including 3D printers and machine tools.
The motor also features long life, excellent wear resistance, and stable output performance for dependable long-term operation.
Performance Table
| Step angle | 2.143° / step |
| Number of steps | 168 step / 1 Rev. |
| Coil resistance | 35 Ω/ ±10% |
| Dimensions | Φ 65 × 32.7 mm |
| Weight | 660 g |

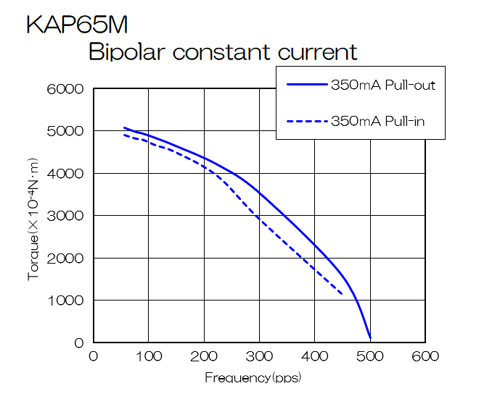

Performance Curve

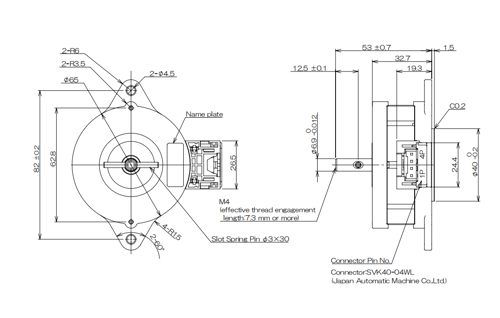

Drawing
