Motor Solutions for
Factory Automation and Robotics


Motors wound to your specification, supplied at volume you can plan around.

ISSUES

今お使いのモータに満足されていますか？

  • 製品のモータがガタついている
  • モータの制約で製品のデザインが自由にできない
  • 消費エネルギーを削減できるモータを探している

Applications

Robot arms working along a conveyor in an automated production line.

Collaborative Robots

The motor holds position accurately and repeatably through assembly, machining, and inspection, so cycle times stay predictable.
Shuttle robots moving cartons through racking in an automated warehouse.

Automated Storage and Retrieval Systems

Controlled acceleration limits shock to the load at each handoff, from crane to conveyor to automated guided vehicle (AGV).
A picking robot lifting a cardboard carton in a warehouse.

Picking Robots

Accurate, repeatable positioning lets a picking robot place stock without dropping or crushing it, shift after shift.
What We Solve

Motion Tuned to the Machine It Drives

Smooth Motion

A low-cogging magnetic circuit removes the stepping you feel at low speed, so the axis can be commanded in fine increments without hunting.

Lower Energy Use

A high-efficiency magnetic circuit cuts losses over long duty cycles, which lowers both the power drawn and the heat the enclosure has to remove.

Integrated Assemblies

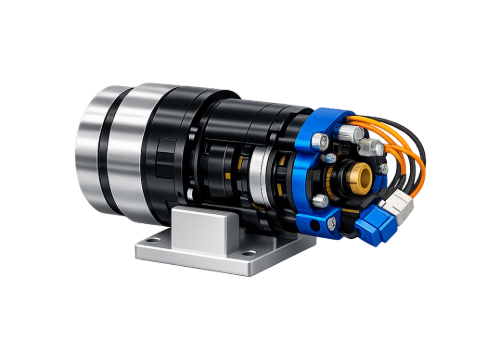

The motor can ship as an assembly with a driver, magnetic encoder, strain wave gear reducer, electromagnetic brake, or bearings already fitted.

SOLUTIONS

マブチモーターの
中空フレームレスモータが解決します！

特長01
特長01

高トルクと低コギングを両立

低コギングトルク磁気回路設計により、ロボットの力強さと滑らかな動きを実現します。

特長02
特長02

幅広い用途で自由度の高い設計

４サイズ展開により幅広い用途で活用いただけます。必要な箇所にそのままビルトインできるフレームレス構造により、製品の形状・構造・サイズなどの設計の自由度が向上します。

特長03
特長03

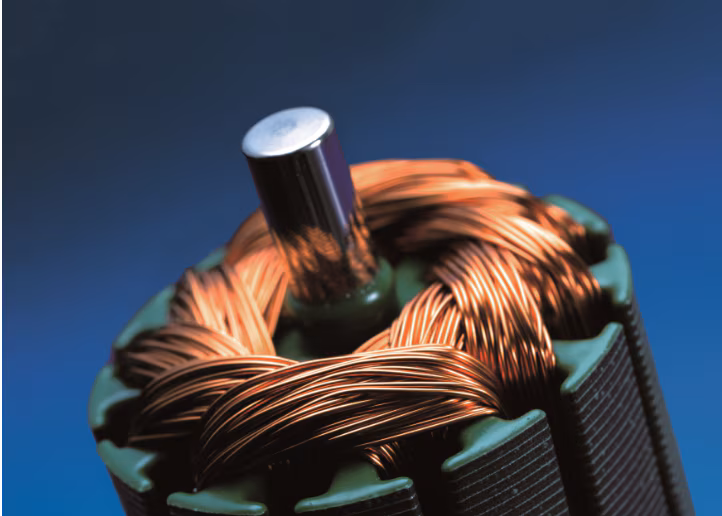

エネルギーロスの少ない高効率設計

高効率磁気回路設計によりエネルギー変換効率90％を実現し、長時間使用時でもエネルギーロスを軽減でき省エネに貢献します。

中空フレームレスモータ「IA/IBシリーズ」を
貴社製品の小型モータにお試しください

「IA/IBシリーズ」の資料はこちら

Product Range

Hollow Frameless Motors
IA-IB Series

IA-A3BZA / IB-A3BZA

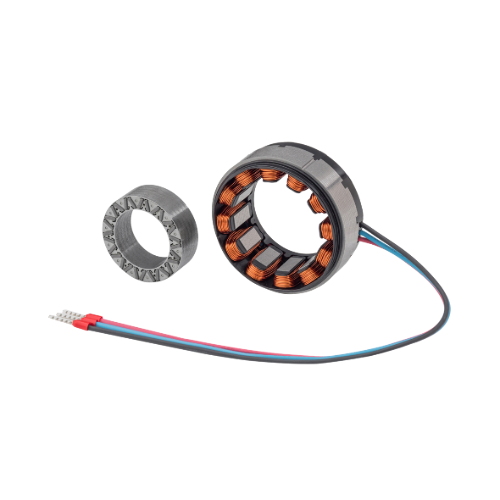

IAIB-A3BZA hollow frameless motor rotor and stator.
Stator Outer Diameter Φ60.0 mm
Rotor Inner Diameter Φ26.0 mm
Nominal Voltage 48 V
Rated Power 200 W
Peak Torque 0.9 Nm (5 s max.)
No-Load Speed 6,050 rpm



IA-B4BZA / IB-B4BZA

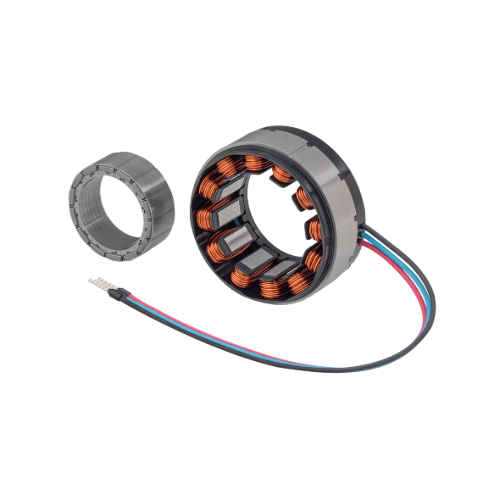

IAIB-B4BZA hollow frameless motor rotor and stator.
Stator Outer Diameter Φ75 0 mm
Rotor Inner Diameter Φ35.0 mm
Nominal Voltage 48 V
Rated Power 500 W
Peak Torque 2.1 Nm (5 s max.)
No-Load Speed 6,950 rpm

IA-C5BZA / IB-C5BZA

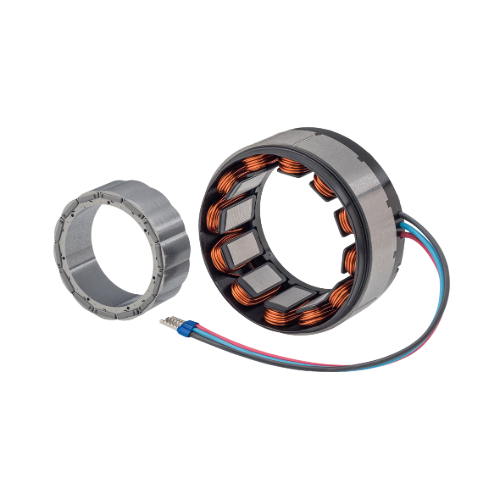

IAIB-C5BZA hollow frameless motor rotor and stator.
Stator Outer Diameter Φ90 0 mm
Rotor Inner Diameter Φ48.0 mm
Nominal Voltage 48 V
Rated Power 650 W
Peak Torque 5.0 Nm (5 s max.)
No-Load Speed 5,900 rpm



IA-D5BZA / IB-D5BZA

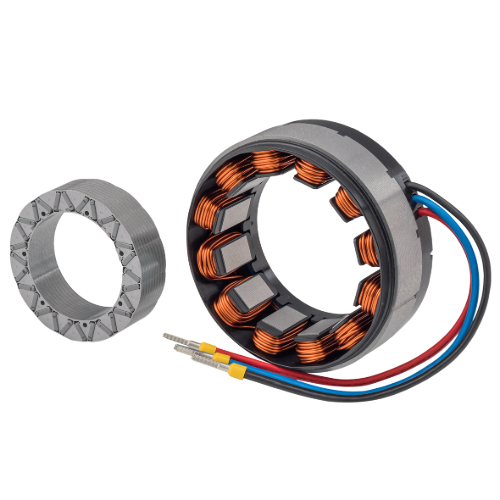

IAIB-D5BZA hollow frameless motor rotor and stator.
Stator Outer Diameter Φ120 0 mm
Rotor Inner Diameter Φ55.0 mm
Nominal Voltage 48 V
Rated Power 950 W
Peak Torque 11.0 Nm (5 s max.)
No-Load Speed 3,450 rpm





Ask us for a prototype sample or a quotation. Our specialist staff will take it from there.

How We Work Together

From First Contact to Mass Production

Prototype Design
Prototype Design

We recommend a frame size and winding to match your torque, speed, and envelope.

Specification Sign-Off
Specification Sign-Off

We agree on a written specification covering delivery terms and warranty.

Pre-Production Build
Pre-Production Build

We build under production conditions, so the results carry over to mass production. Factory visits and supplier audits are welcome.

Mass Production
Mass Production

We deliver to your schedule and volume, supported by a global manufacturing network.

中空フレームレスモータ「IA/IBシリーズ」を
貴社製品の小型モータにお試しください

「IA/IBシリーズ」の資料はこちら

Why Mabuchi Motor

01

Quality That Holds at Volume

Mabuchi Motor has built small DC motors since 1954. Production runs across a global procurement and manufacturing network, so a disruption at one site does not stop your line
02

Custom Windings and Integrated Assemblies

Beyond the standard range, windings can be changed to match your supply voltage and load, and the motor can ship with a driver or gear reducer already fitted. Dedicated staff support the project from evaluation through mass production.
FAQ

よくある質問

製品の価格について教えてください。

モータの仕様やロットにより異なりますので、弊社営業窓口までお問い合わせください。

モータの特性表の読み方を教えてください。

特性表及び性能線図の読み方については、「モータの性能」に解説を掲載していますのでご参照ください。

モータを使う際に注意する点はありますか？

モータ使用時の一般的な注意事項は、「モータ使用上の注意」をご参照ください。各用途の注意事項については弊社営業担当までご相談ください。

Contact

Talk to Specialist Staff

Tell us about your application and required performance specifications, and our specialist staff will recommend the most suitable product for your needs.
